Planes

  • C-FTNY: PIPER PA-31-350 NAVAJO CHIEFTAIN

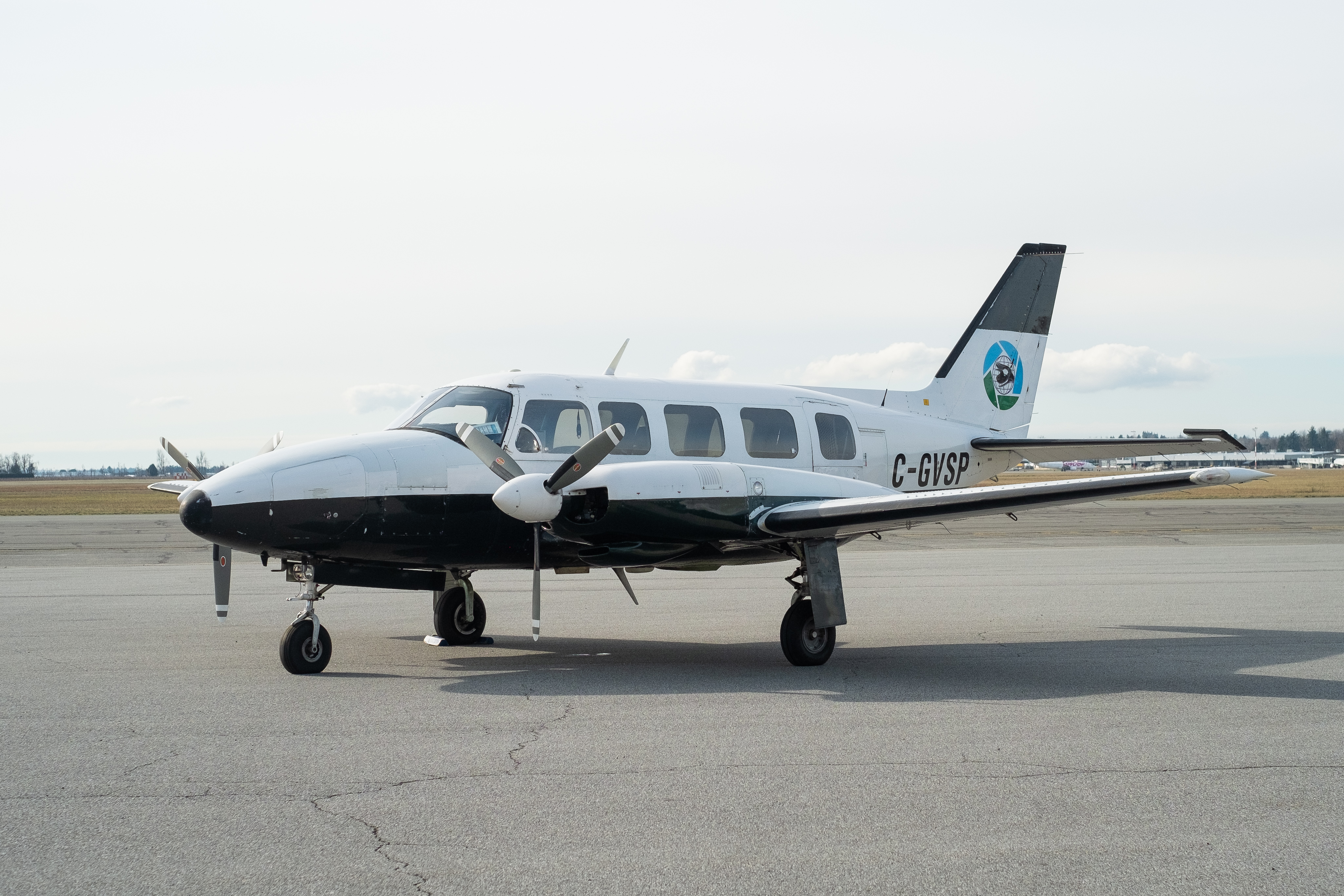

  • C-GVSP: PIPER PA-31-350 NAVAJO CHIEFTAIN
  • C-FFSL: PIPER PA-31 NAVAJO PANTHER
  • C-FFFC: PIPER PA-31 NAVAJO

Plane Specs

  • Speed: cruise 170 kts
  • Altitude: max 23,000 ft
  • Endurance: 5.5 hours
  • Certified for Instrument Flight Rules
  • Certified for flight into known icing
  • Stability
  • Reliability
  • Availability

ZEISS/INTERGRAPH DMCII-230

Why did we choose the DMCII 230? It's the best technology currently available. With 230 megapixels in a single sensor, it blows away the competition. Other systems take multiple photos and combine them to get the same resolution, thereby introducing the opportunity for mismatches and significant errors.

DMCII-230 CAMERA SPECS

  • Large format digital mapping camera
  • One large 230 MPixel CCD
  • Four 46 MPixel multi-spectral CCD's
  • Infra-red always acquired simultaneously
  • 5.6 µm pixel size
  • 92 mm focal length
  • 4 Band (RGBN)
  • High resolution PAN
  • High frame-rate (2.3 sec/frame)
  • As fine as 2 cm ground sample distance
  • PAN/colour ratio of 1:2.6
  • Real colour infrared (CIR)
2015 Boresight Calibration Report 2011 Factory Calibration Report

Other Sensors Available

We also provide a platform for other sensors, so we can make arrangements for you to get the type of images you need and want. We currently have access to several LiDAR units and thermal sensors.

Leica ALS70 LiDAR unit
Leica ALS60 LiDAR unit
Riegl 1560 LiDAR unit
Riegl 580 LiDAR unit
Range & Bearing PS-HDR
Gen4 Thermal Camera
APPLANIX POS AV5 510 IMU

GROUND CONTROL & TARGETING

LEICA 1230 GG UNIT
